Galvanized Steel E-Z Grip Conduit Hanger Clamp Electrical Conduit Hangers With Knurled Nut

    Buy cheap Galvanized Steel E-Z Grip Conduit Hanger Clamp Electrical Conduit Hangers With Knurled Nut from wholesalers

    Buy cheap Galvanized Steel E-Z Grip Conduit Hanger Clamp Electrical Conduit Hangers With Knurled Nut from wholesalers
    • Buy cheap Galvanized Steel E-Z Grip Conduit Hanger Clamp Electrical Conduit Hangers With Knurled Nut from wholesalers
    • Buy cheap Galvanized Steel E-Z Grip Conduit Hanger Clamp Electrical Conduit Hangers With Knurled Nut from wholesalers

    Galvanized Steel E-Z Grip Conduit Hanger Clamp Electrical Conduit Hangers With Knurled Nut

    Ask Lasest Price
    Brand Name : ELECMAN
    Model Number : ES-8008
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Pcs/Day
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Galvanized Steel E-Z Grip Conduit Hanger Clamp Electrical Conduit Hangers With Knurled Nut

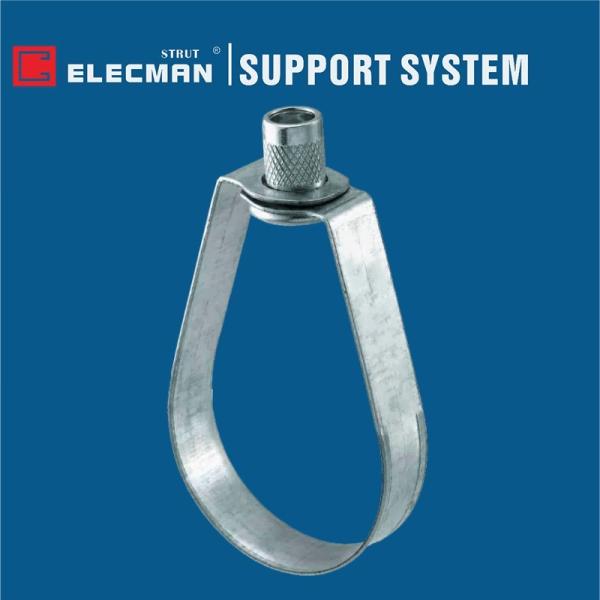

    ELECMAN ® Galvanized Steel E-Z Grip Sprinkler Loop Pipe Hanger With Knurled Nut


    Applications


    ELECMAN ® Galvanized steel E-Z grip sprinkler loop pipe hanger with knurled nut are used for supporting sprinkler piping in fire protection applications, and recommended for suspending stationary non-insulated pipe lines. Ideal for suspension using Threaded pins and Threaded rods.


    Features


    • For use in fire fighting and sprinkler applications.
    • Recommended for support, anchor or guide of pipe.
    • One-piece design allows quick and easy installation of sprinkler pipes.
    • Threaded swivel insert nut to allow for height adjustment after installation.
    • With knurled nut for fixing to stud bolt or threaded rod against falling out.
    • Mounting without any tools.
    • Locking device allows easy premounting.
    • Adjustable in height.


    Specification Data


    ELECMAN provides full size galvanized steel E-Z grip sprinkler loop pipe hanger with knurled nut from 3/4" to 10".



    CAT #Trade SizeDiameterRod Size(A)Strip SizeTotal Height(H)Safe Working Load
    ES-8008 A3/4"28mm10mm1.5 * 20mm61mm200kgs
    ES-8008 B1"35mm10mm1.5 * 20mm68mm200kgs
    ES-8008 C1-1/4"42mm10mm1.5 * 20mm75mm200kgs
    ES-8008 D1-1/2"48mm10mm1.5 * 20mm81mm200kgs
    ES-8008 E2"60mm10mm1.5 * 20mm100mm200kgs
    ES-8008 F2-1/2"73mm10mm2 * 32mm120mm450kgs
    ES-8008 G3"89mm10mm2 * 32mm135mm450kgs
    ES-8008 H3-1/2"105mm10mm2 * 32mm150mm450kgs
    ES-8008 I4"115mm10mm2.5 * 32mm165mm500kgs
    ES-8008 J5"140mm12mm2.5 * 40mm195mm550kgs
    ES-8008 K6"168mm12mm3 * 40mm230mm700kgs
    ES-8008 L8"219mm12mm3 * 50mm290mm700kgs
    ES-8008 M10"273mm12mm3 * 50mm315mm700kgs


    Quality Control


    ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.


    Packing Information


    Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
